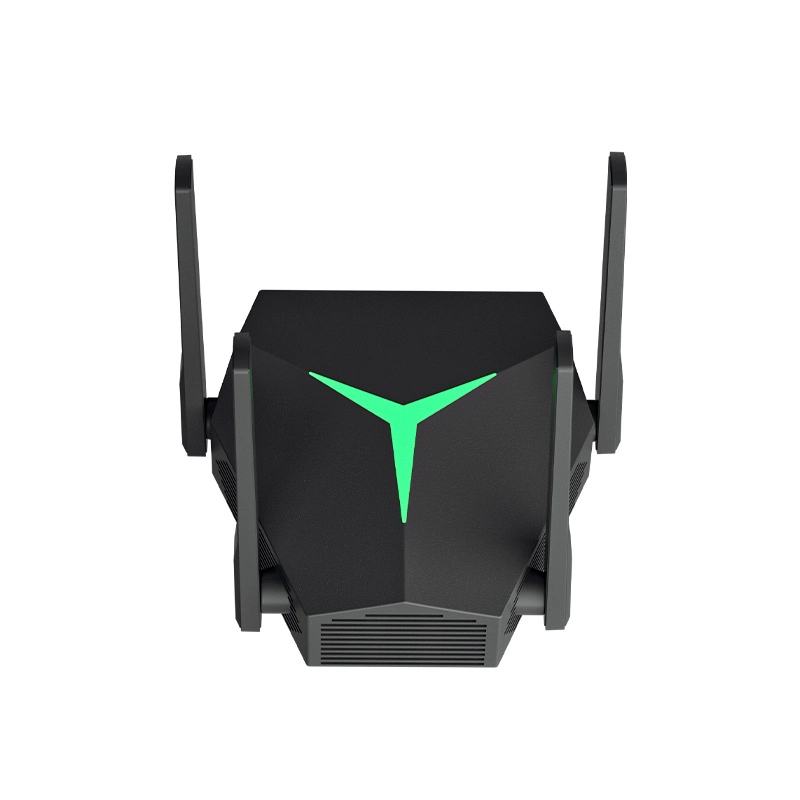

3 in 1 Router WiFi Repeater Enhancer Long Distance 1200Mbps
Chip: RTL8197FN+RTL8812BR-VN
Flash: 8MByte
RAM: 64MByte (DDR2)
Antenna: 4*3dBi External Antennas
Wireless rate: 2.4G 300Mbps + 5.8G 867Mbps
Product Description
EX004 Wi-Fi Range Extender is designed to boost your existing network range with up to 1167Mbps wireless speed. It turns your single band Wi-Fi into dual band wireless networks, It can be compatible with both 802.11ac & b/g/n Wi-Fi devices and is applicable for most countries too.
The Desktop placement and wall hanging design help you save space, Generally, it is ideal for very large houses to reduce Wi-Fi dead spots and Let you enjoy smoother HD video streaming, online gaming etc.
EX004 adopts the next generation 802.11ac technology and delivers fast speeds of dual band Wi-Fi up to 1167Mbps, optimized for Internet activities requiring high bandwidth, such as HD videos and online gaming.
The support of dual band helps extend your existing 2.4G or 5GHz Wi-Fi signal with high speed to further distance, turning your single band Wi-Fi to dual band and reducing Wi-Fi dead spots.
Function design
EX004 supports Phone Ul design for Smart phones, simply connect your phone to extender's SSID, the User settings page will pop-up automatically, no more than three steps to finish the Wi-Fi extension.
Adopting a dual function design of desktop placement and wall mounting
Equipped with hook accessories, when it needs to be hung on the wall, the hook accessories are glued with the double-sided tape provided, and the hook is attached to the position where it needs to be installed, directly hanging this product on top; When it is not necessary to hang it on the wall, simply place the product on the desktop.
Therefore, in addition to considering the placement issue, this design also solves the problem of placing the product in the most appropriate position and obtaining better extended signals；
Equipped with four dual band high gain antennas and MIMO technology, it ensures stable wireless connection and data transmission for multiple Wi Fi devices simultaneously.
Three WIFI expansion modes to choose
Repeater Mode
When users have a WIFI network and need to expand the WIFI coverage range, they can choose this mode.
AP Mode
When users have broadband access but no WIFI network, they can choose this mode.
Router Mode
When the user has neither broadband access nor WIFI network, this mode can be selected.
Product Parameters
| Model | EX004 | Data Rate | 2.4GHz: 300Mbps (2T2R) |
| Chip | RTL8197FN+RTL8812BR-VN | 5GHz: 867Mbps (2T2R) | |
| Flash | 8MByte | EIRP | 2.4GHz < 20dBm |
| RAM | 64MByte (DDR2) | - 5GHz < 20dBm | |
| Antenna | 4*3dBi External Antennas | Reception Sensitivity | - 2.4GHz: |
| Wireless rate | 2.4G 300Mbps + 5.8G 867Mbps | 11b 11M: -81dBm @ 8％PER | |
| Power adapter | AC 100-240V 50/60Hz 0.1A | 11g 54M: -68dBm @ 10％PER | |
| (built-in power module) | 11n HT20 MCS7: -65dBm @ 10％PER | ||
| Button | 1*RST | 11n HT40 MCS7: -62dBm @ 10％PER | |
| Interface | 1*10/100BaseTX(Auto MDI/MDIX) LAN Port | - 5GHz: | |
| LED indicators | Red / Green / Yellow | 11a 54M: -68dBm @ 10％PER | |
| MESH | No | 11n HT20 MCS7: -65dBm @ 10％PER | |
| Hardware | 11n HT40 MCS7: -62dBm @ 10％PER | ||
| Interface | 2*10/100Mbps Ethernet port | 11ac VHT80 MCS9: -51dBm @ 10％PER | |
| Power Supply | -USB Type A to Type C power Line Supply | Advanced Features | - Easy Placement , Mobile UI Quick Setup, MIMO, Dual frequency extend, ……… |
| Button | 1*RST | Others | |
| LED Indicators | 1 *Red, 1 *Green, 1 *Yellow | Package Contents | - EX004 Wireless Extender *1, Type C to USB A power cable *1 |
| Antenna | - 4 *3dBi fixed dual band antennas | - Quick Installation Guide *1, 1* Ethernet cable(optional) | |
| Dimensions (W x D x H) | 95.0*114.0*38.0mm (not including antennas) | Environment | - Operating Temperature: 0℃~40℃ (32℉ ~104℉) |
| Wireless | - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) | ||
| Standards |
- IEEE802.11ac, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
- Operating Humidity: 10%~90% non-condensing | |
| RF Frequency | 2.4GHz/5GHz | - Storage Humidity: 5%~90% non-condensing | |
